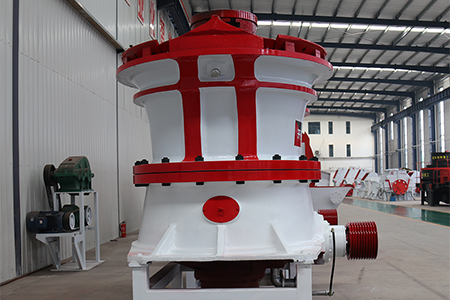

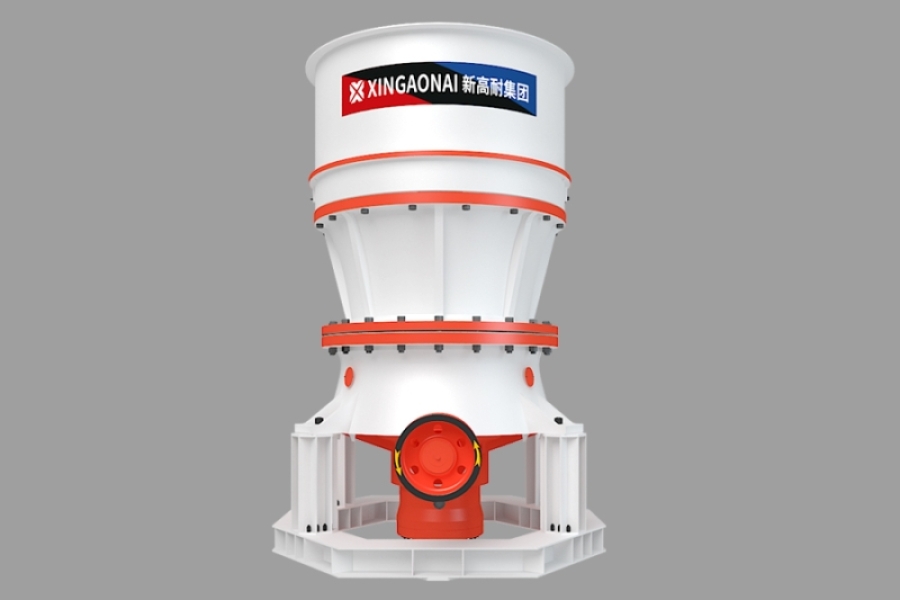

XCS series single-cylinder hydraulic cone crusher integrates mechanical, hydraulic, automation, intelligent control and other technologies. It is suitable for medium and fine crushing of medium-hard materials. It has simple and reliable structure, low failure rate, low production cost and strong operation stability. With the advantages of easy maintenance, it is widely used in metallurgy, construction, hydropower, transportation, building materials and other industrial fields.
Structural optimization

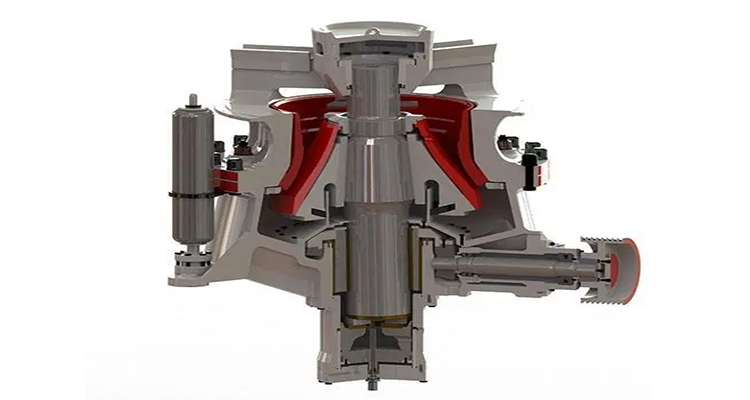

The utilization rate of wearing parts is high, and the main shaft can withstand greater crushing force and greater stroke. High-strength cast steel frame, alloy material spindle.
Integrated design
The integrated design of hydraulic lubrication realizes overload protection and hydraulic adjustment, and is convenient for maintenance.
Lifting cone

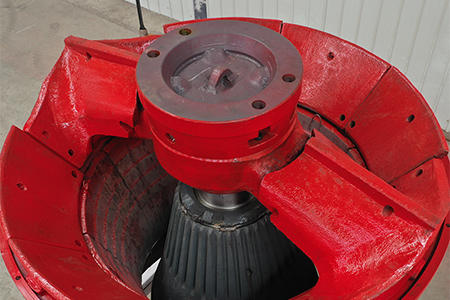

The moving cone can be raised and lowered by a single hydraulic cylinder, which can realize various functions such as adjustment of the discharge opening, cleaning, overload protection, etc. The medium and fine crushing of various cavity types can be realized only by replacing the fixed cone.
High productivity
The special crushing cavity has a large processing capacity, which ensures that the crushing effect is not affected by the wear of the liner while the lamination crushing efficiency is high.
| Model | Type | Max feeding port (mm) | Min feeding port (mm) | Power (kw) | Capacity (tph) |
|---|---|---|---|---|---|
| XCS420 | EC | 240 | 120 | 90 | 88-128 |
| C | 200 | 130 | 78-118 | ||
| XCS430 | EC | 360 | 180 | 150 | 126-344 |
| C | 300 | 150 | 108-301 | ||
| MC | 235 | 80 | 91-275 | ||
| XCS440 | EC | 450 | 180 | 250 | 267-601 |
| C | 400 | 150 | 225-511 | ||
| MC | 300 | 80 | 195-486 | ||

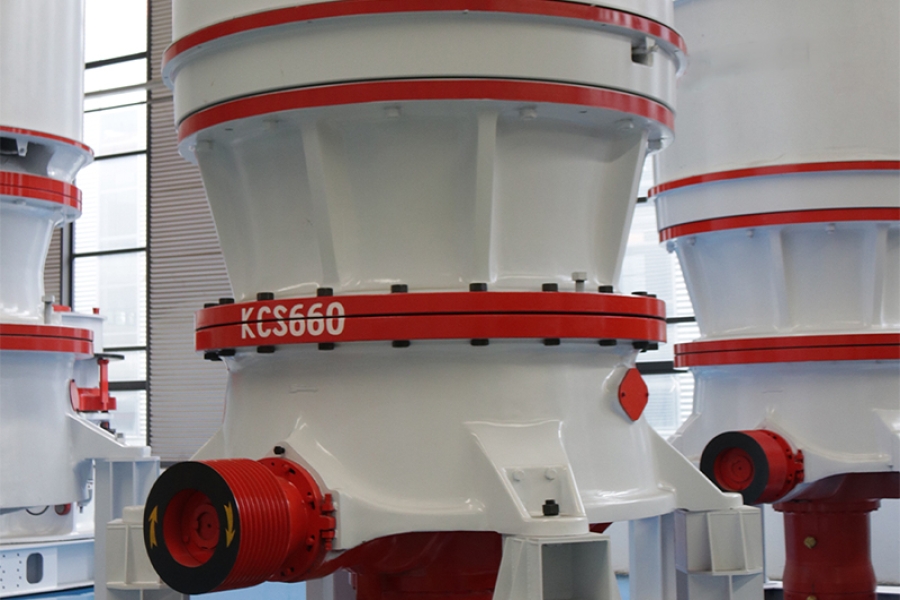

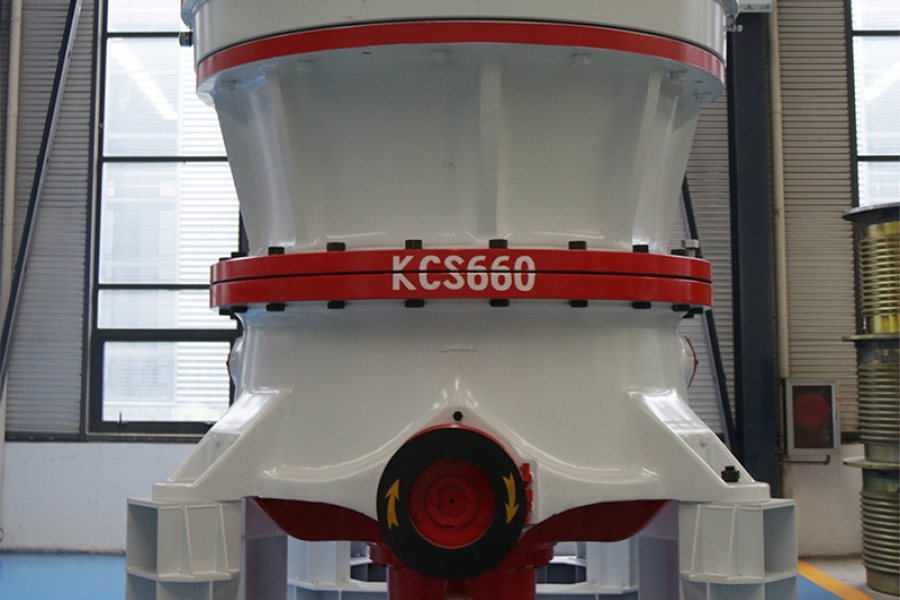

| XCS660 | EC | 560 | 220 | 315 | 349-1050 |
| C | 500 | 150 | 318-892 |
