Beneficiation Equipment

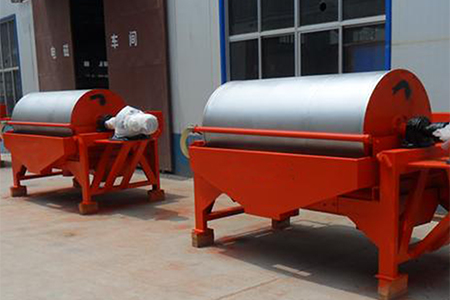

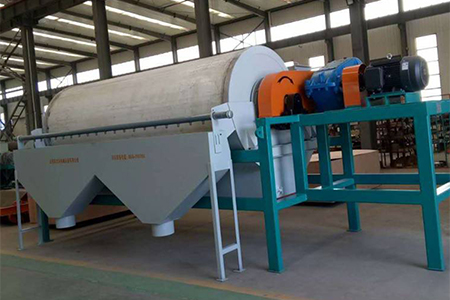

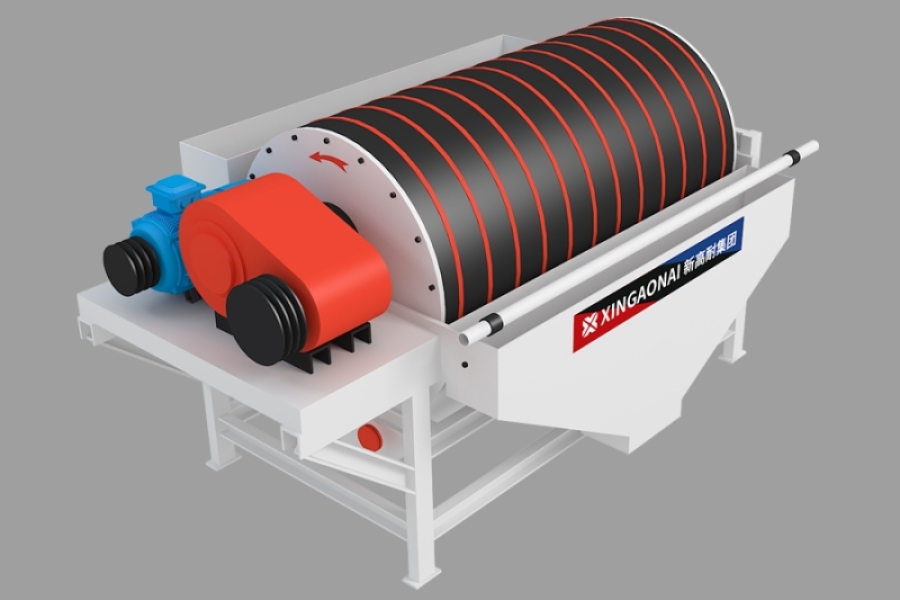

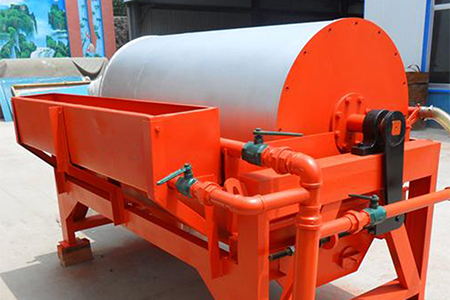

CTB Series Permanent Magnetic Drum Separator

CAPACITY

24-160t/h

FEED SIZE

≤10mm

Application areas：Permanent magnet drum magnetic separator is widely used in the separation of strong magnetic minerals in metallurgy, mining, building materials, mineral processing and other fields.

Applicable materials：Permanent magnet drum magnetic separator is suitable for wet magnetic separation of ferrimagnetic materials such as magnetite, roasted ore, ilmenite, or iron removal of non-metallic ores.

GET A QUOTE CHAT NOW

CTB Series Permanent Magnetic Drum Separator

Introduction
Advantages
Working principle
Parameters

PRODUCT INTRODUCTION

The permanent magnetic drum magnetic separator is suitable for wet magnetic separation of metal ores with a particle size below 3mm. The magnetic substances in the mixture are separated by mechanical force, the screening effect is remarkable, and the operation is reliable. It is very popular in the wet beneficiation industry.

ADVANTAGES

Strong magnetic field

The magnet is made of high-quality ferrite material and rare earth magnet steel, which has high strength and strong anti-demagnetization ability.

Wear resistant material

The surface of the barrel is made of non-magnetic stainless steel and covered with wear-resistant rubber.

Adaptable

The duckbill type flushing pipe has strong adaptability to water quality and can withstand large fluctuations.

Good filtering effect

Realize efficient separation of magnetic minerals and non-magnetic minerals.

WORKING PRINCIPLE

WORKING PRINCIPLE

Parameters

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder field strength (mT)	Cylinder Rotating speed (r/min)	Dry ore capacity (t/h)	Feed size (mm)	Pulp concentration (%)	Motor power (kw)	Total weight (t)	lengthwidthheight (mm)
CTBY1018	1000	1800	350-550	23	42-65	0-10	20-50	5.5	5.2	316022501750
CTBY1024	1000	2400	350-550	23	53-86	0-10	20-50	7.5	6.4	379022501750
CTBY1030	1000	3000	350-550	23	82-124	0-10	20-50	7.5	7.1	446022501750
CTBY1218	1200	1800	350-550	20	58-97	0-10	20-50	7.5	6.7	338024602000
CTBY1224	1200	2400	350-550	20	71-120	0-10	20-50	11	7.2	419024602000
CTBY1230	1200	3000	350-550	20	103-158	0-10	20-50	11	8.9	477024602000

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder field strength (mT)	Cylinder Rotating speed (r/min)	Dry ore capacity (t/h)	Feed size (mm)	Pulp concentration (%)	Motor power (kw)	Total weight (t)	lengthwidthheight (mm)
CTBC1018	1000	1800	300-500	23	36-54	0-4	20-50	5.5	5.2	316022501750
CTBC1024	1000	2400	300-500	23	44-75	0-4	20-50	7.5	6.4	379022501750
CTBC1030	1000	3000	300-500	23	66-103	0-4	20-50	7.5	7.1	446022501750
CTBC1218	1200	1800	300-500	20	47-82	0-4	20-50	7.5	6.7	338024602000
CTBC1224	1200	2400	300-500	20	62-105	0-4	20-50	11	7.2	419024602000
CTBC1230	1200	3000	300-500	20	83-129	0-4	20-50	11	8.9	477024602000

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder field strength (mT)	Cylinder Rotating speed (r/min)	Dry ore capacity (t/h)	Feed size (mm)	Pulp concentration (%)	Motor power (kw)	Total weight (t)	lengthwidthheight (mm)
CTBJ1018	1000	1800	200-300	23	24-36	0-2	20-50	5.5	5.2	316022501750
CTBJ1024	1000	2400	200-300	23	33-56	0-2	20-50	7.5	6.4	379022501750
CTBJ1030	1000	3000	200-300	23	46-72	0-2	20-50	7.5	7.1	446022501750
CTBJ1218	1200	1800	200-300	20	35-45	0-2	20-50	7.5	6.7	338024602000
CTBJ1224	1200	2400	200-300	20	43-77	0-2	20-50	11	7.2	419024602000
CTBJ1230	1200	3000	200-300	20	54-86	0-2	20-50	11	8.9	477024602000

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder field strength (mT)	Cylinder Rotating speed (r/min)	Dry ore capacity (t/h)	Feed size (mm)	Pulp concentration (%)	Motor power (kw)	Total weight (t)	lengthwidthheight (mm)
CTBN1018	1000	1800	260-450	23	35-68	0-4	20-50	5.5	5.2	316022501750
CTBN1024	1000	2400	260-450	23	46-86	0-4	20-50	7.5	6.4	379022501750
CTBN1030	1000	3000	260-450	23	67-126	0-4	20-50	7.5	7.1	446022501750
CTBN1218	1200	1800	260-450	20	52-90	0-4	20-50	7.5	6.7	338024602000
CTBN1224	1200	2400	260-450	20	77-126	0-4	20-50	11	7.2	419024602000
CTBN1230	1200	3000	260-450	20	90-160	0-4	20-50	11	8.9	477024602000
