Beneficiation Equipment

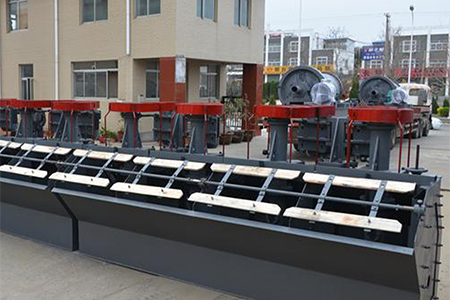

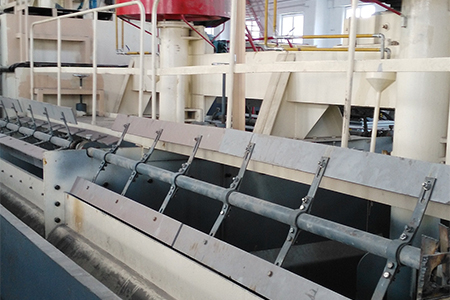

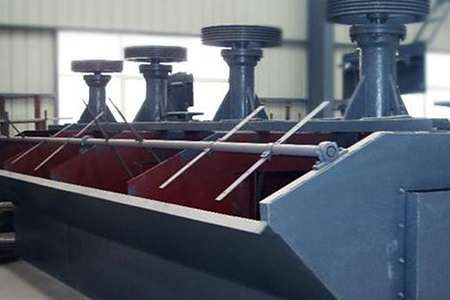

SF Series Flotation Machine

CAPACITY

0.2-12（m³/min）

FEED SIZE

300-850mm

Application areas：Flotation machines are widely used in roughing or sweeping processes in flotation operations in mining, metallurgy, chemical industry and other fields.

Applicable materials：Flotation machines are suitable for the separation of various non-ferrous metals and non-metallic minerals such as lithium ore, gold ore, iron ore, coal fluorspar, etc.

GET A QUOTE CHAT NOW

Introduction
Advantages
Working principle
Parameters

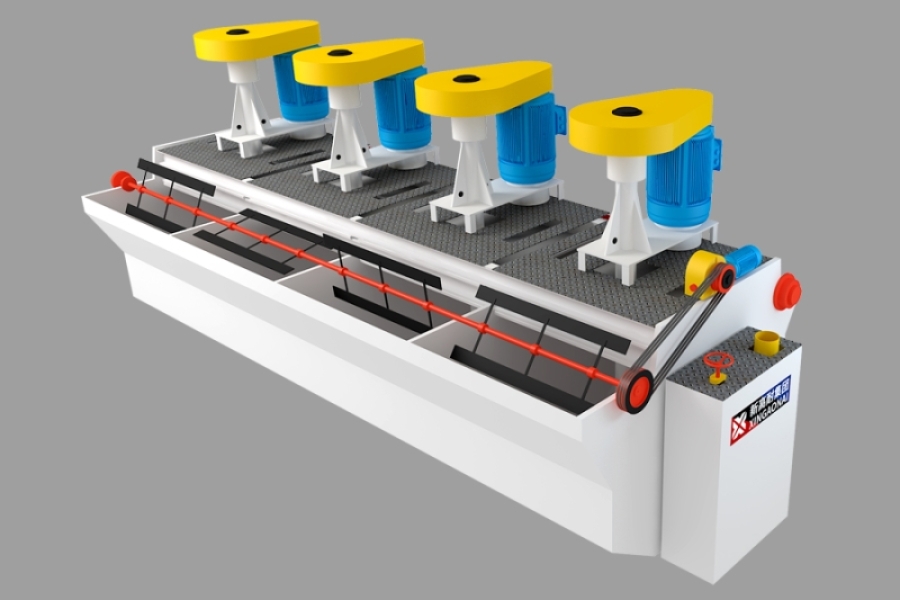

PRODUCT INTRODUCTION

Flotation cell is the abbreviation of flotation concentrator. It is suitable for the separation of metal ores. It is often used for roughing or sweeping in flotation operations. It is a cost-effective flotation equipment in the current market.

ADVANTAGES

Multiple functions

It has three functions of air suction, slurry suction and flotation. Adjust the height of the ram to control the height of the liquid. The forward-inclined tank body has a small dead angle.

Good suspension effect

The double-sided blades of the backward-inclined impeller ensure reasonable slurry circulation, reduce coarse-grained sedimentation, and facilitate the suspension of coarse-grained minerals.

Durable components

The gap between the impeller and the cover plate is reasonable. When the impeller rotates, the internal pulp circulation increases the centrifugal force and increases the suction capacity.

Easy to operate

Ore slurry surface automatic control device, mechanical stirring, easy to adjust.

WORKING PRINCIPLE

Parameters

Model	Effective volume (m³)	Capacity (m³/min)	Diameter of impeller (mm)	Impeller revolutions (r/min)	Stir motor power (kw)	Scraper motor power (kw)	Single slot weight (kg)
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	468
SF-0.7	0.7	0.3-1.0	350	336-384	3	1.1	629
SF-1.2	1.2	0.6-1.6	450	312	5.5	1.1	1373
SF-2	2	1.5-3	550	280	11	1.5	1879
SF-2.8	2.8	1.5-3.5	550	280	11	1.5	1902
SF-4	4	2.0-4	650	235	15	1.5	2582
SF-6	6	3-6	760	191	30	2.2	3540
SF-8	8	4.0-8	760	191	30	2.2	4129
SF-16	16	5.0-16	850	169-193	45	1.5	7415
SF-20	20	10-12	850	169-193	45	1.5	9828
